How to Lock a Manhole Cover with a Padlock?

Organisations lock manhole covers to prevent unauthorised access, vandalism, sewer theft, and accidental opening. Specialist locking manhole covers exist, but they require removing and replacing the existing rim and cover and can be costly. A pragmatic retrofit solution uses simple steelwork and a suitable padlock to secure the cover while keeping a practical and economical approach.

Legal and safety considerations before you start

Always check ownership, health and safety, and statutory obligations before modifying a manhole. Many covers provide ventilation or emergency access and may be subject to utility company rules. Obtain permission from the asset owner and ensure that any locking method does not impede emergency access, drainage, or ventilation. Record who holds keys and provide rescue instructions for authorised personnel.

Retrofit methods that work (overview)

There are three common, low-cost retrofit methods that avoid replacing the entire cover: fixing steel loops into the concrete around the manhole; welding or bolting a right-angled flat bar loop to the frame; or fitting a removable securing bar (round or flat) that spans the cover and is held by a padlock. Each method creates a positive anchor point through which a padlock shackle can pass. Choose the method that suits the site and the level of permanence required.

Using steel loops fixed into the surround (best for permanent installs)

Drill and install heavy-duty anchor bolts or sleeve anchors into the concrete around the manhole rim at opposing points. Fit D-shaped steel loops or welded eye bolts to these anchors. Use a solid round or flat bar that passes through two opposing loops and then secure the bar with a padlock through a drilled hole in the bar or through a welded loop on the bar. Use chemical anchors or stainless steel bolts to resist corrosion. Ensure anchors are recessed or countersunk so the cover sits flush.

Using bent flat bar (simple and effective)

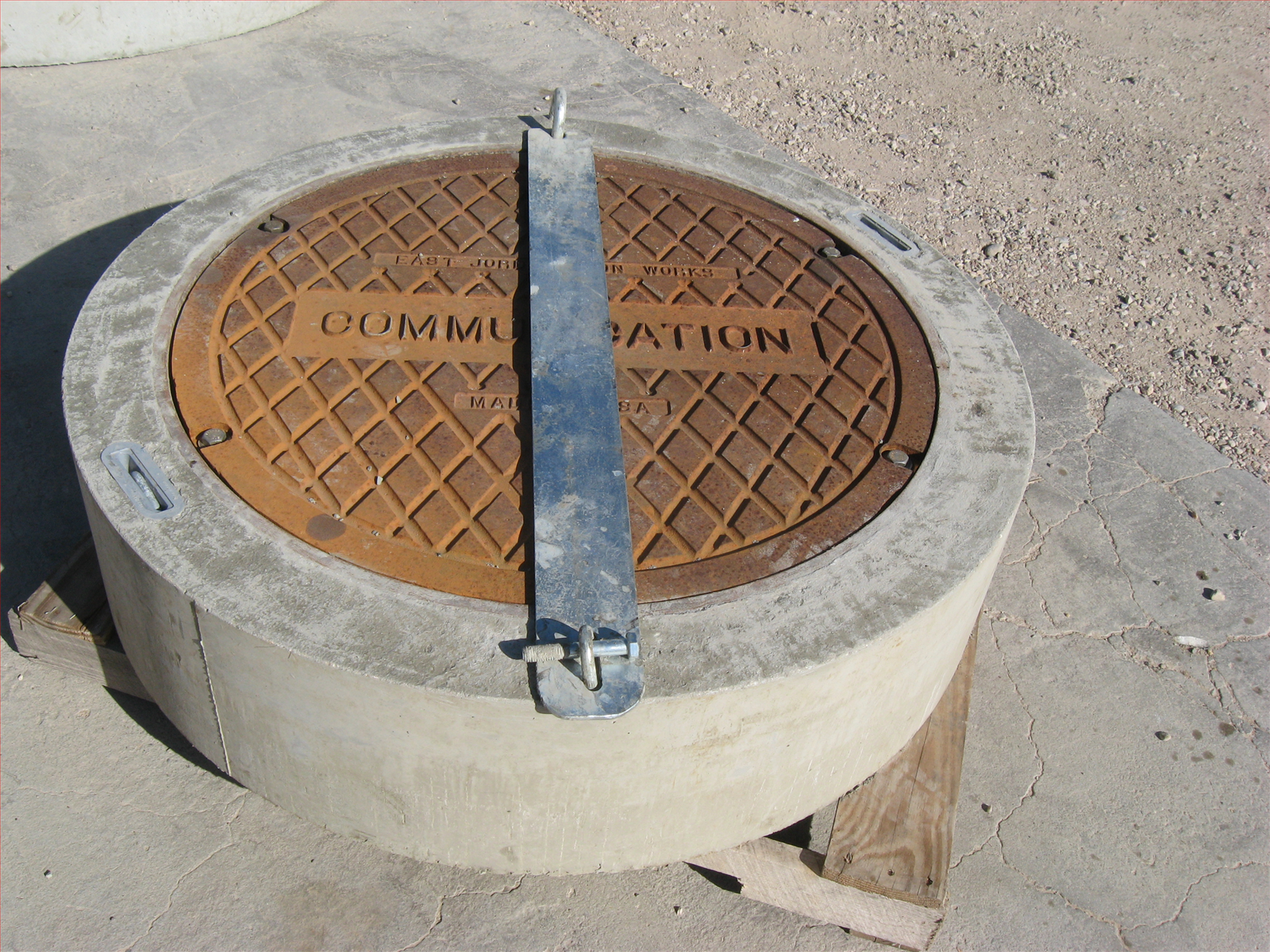

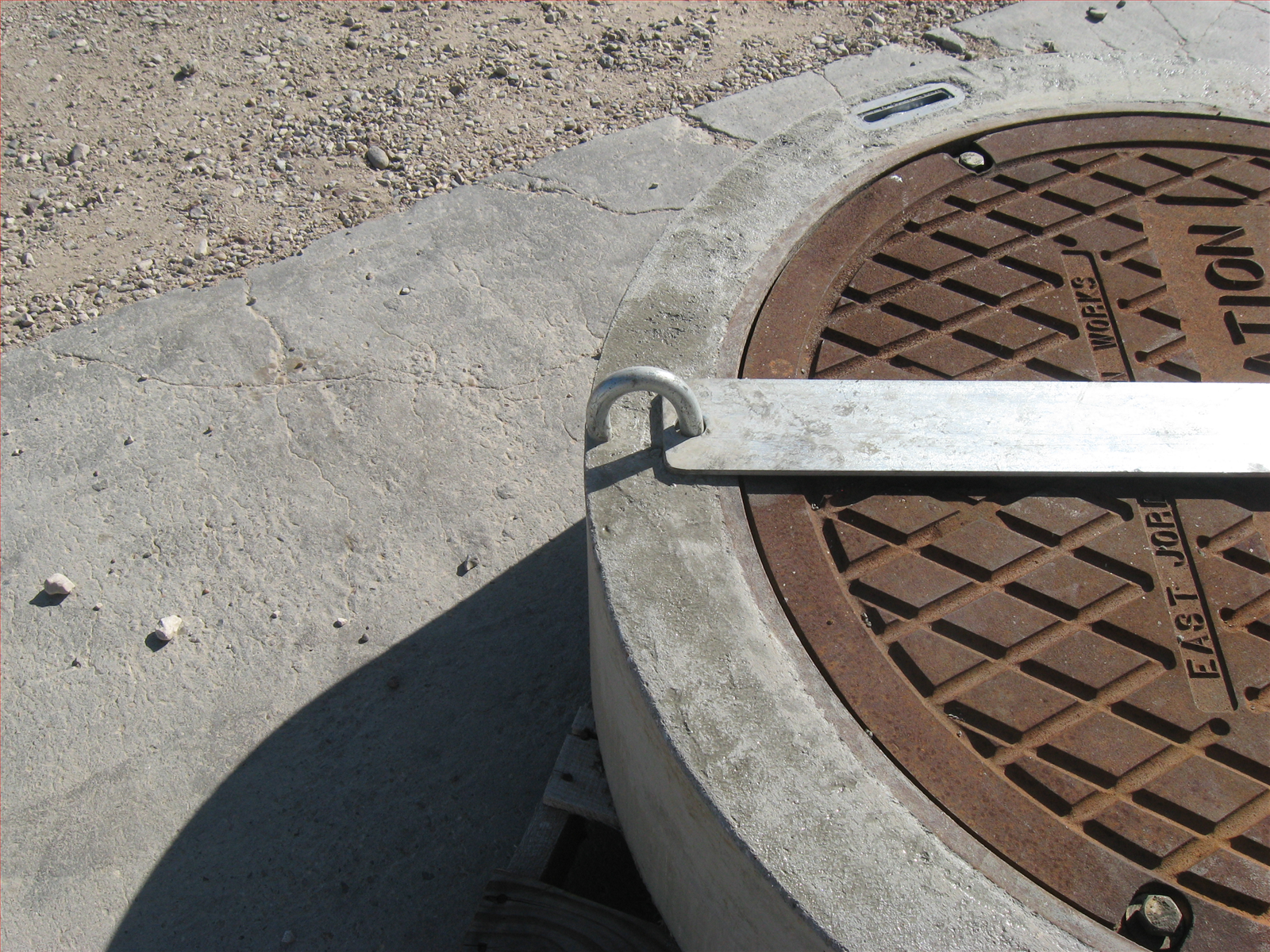

Cut a length of flat steel bar and bend it into an L or U shape so it hooks over the edge of the manhole frame or engages with pre-existing features. Drill a hole in the end of the bar sized about 1mm larger than your padlock shackle. Slide the bar across the cover so it bridges the seam, then lock it in place with a padlock. Use a thicker flat bar (6–10 mm) to prevent easy bending. Bolt or weld one end in place for a semi-permanent fix, or use two removable bars for easier authorised access.

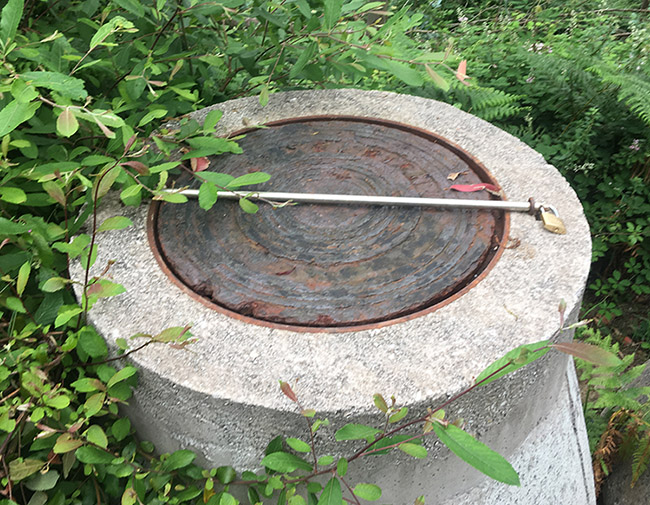

Using a round bar or tube as a removable securing rod

Use a length of steel tube or solid round bar that fits the gap between two anchor points or across the cover. Drill a hole near the end sized for the padlock shackle plus a small clearance. Slide the bar through the anchor points and lock the exposed hole with a padlock. Tube can be useful as it reduces weight and is easier to manoeuvre; solid bar gives more resistance against cutting. Consider a weatherproof sleeve to reduce corrosion and noise.

Padlock selection for manhole security

Choose a padlock designed for outdoor, heavy-duty use: closed-shackle or Diskus designs reduce exposed shackle, boron or hardened steel shackles resist cutting, and marine-grade or stainless components prevent corrosion in wet locations. Recommended types include shrouded-diskus or closed shackle high CEN-rated models for higher-risk sites, or weatherproof laminated/solid-body locks for general use. Consider keyed-alike suites if multiple covers need the same access key.

Installation best practice (step-by-step)

Confirm owner consent and emergency access plan.
Measure the rim and fittings to decide anchor positions and bar length.
Mark anchor locations clear of drainage channels and load points.
Drill using correct anchors and fix steel loops or bolts with chemical or mechanical anchors.
Fit the securing bar (flat or round) to engage with loops or frames.
Drill a clearance hole in the bar sized 1mm larger than the padlock shackle, or use a welded loop on the bar.
Fit the padlock, check operation, and photograph and log the install (serial numbers, keyholders).

Practical tips and anti-tamper details

Use recessed anchors and countersunk fixings so the cover still sits flush. Engrave or mark the padlock with site ID and record key holders. Use restricted-key systems to avoid unauthorised duplication. Fit a weather hood or drain channel around the bar if water ingress is a concern. Where possible, use two locking points spaced apart — this increases the time required for attackers to defeat the fix. Consider a small tamper-evident seal or cable tie that will show if the cover has been opened in transit.

Maintenance and auditing

Schedule regular inspections to ensure anchors and bars have not corroded or loosened. Lubricate padlocks with a PTFE or graphite spray, not oils that attract grit. Replace corroded anchors or bars promptly. Keep a log of inspections and any key issuance or changes.

Pros and cons of the retrofit approach

Pros: Low cost, quick to install, flexible, allows using existing cover and frame, easy to replace padlocks. Cons: Not as tamper-proof as fully integrated proprietary locking covers, requires competent installation for secure anchors, possible interference with ventilation if not planned.

Summary and recommended approach

For occasional, low-cost security the bent flat bar or removable round bar secured through fixed steel loops offers a pragmatic, effective solution. For high-risk sites invest in strong anchors, a hardened removable bar and a CEN-rated closed shackle or Diskus padlock. Always obtain permission from the cover owner, log keyholders, and plan for safe emergency access.
