Keyed Alike High Security 63mm

Choose a different size of padlock?

63mm 77mm

Product Attributes

Weight506
Shackle11mm
Grade (?)4
Weatherproof Rating (?)Outdoor
MaterialHardened Steel
£132.27
£158.72  inc vat
  • 1 - 2
  • 3 - 5
  • 6 - 10
  • 11 - 20
  • 21+
  • £132.27 ex vat
  • £128.38 ex vat
  • £124.49 ex vat
  • £120.60 ex vat
  • £116.71 ex vat
Large bulk orders? Contact us

The world leading Granit Padlock uses an ABUS Plus disk cylinder with 250,000 key variations and keys that cannot be copied. The shackle and body are made from hardened alloy steel and are insurance approved up to CEN Grade 5!

This latest model is also a fully weatherproof marine grade padlock with a cataphoretic coat to provide 40 years of corrosion resistance!

Insurance Ratings:
- BSEN 12320
- CEN 4-5

More about this product

About this product

Keyed Alike:
This means that when you buy two or more padlocks from the keyed alike range they will all be operated by the same key. Each padlock comes with two keys as standard.


The world leading Granit padlocks are manufactured by ABUS in Germany. They are the only high security padlocks in the world to be cataphoretically coated to ensure they are a fully weatherproof to a marine grade standard and suitable for prolonged used outdoors and in a saline environment. ABUS have assured that these padlocks will be resistant to corrosion for 40+ years.

The large 77mm version affords an insurance approved CEN Grade 5 whilst the 63mm reaches CEN 4. Both use an ABUS Plus cylinder which boasts 250,000 key different variations and keys that cannot be copied at a traditional locksmith without your unique 'code-card'.

Please note that when this padlock is unlocked it retains the key until it is relocked once again.

If required a small bolt can be removed from the side of the lock to enable the shackle to be removed completely. Often useful when fitting to shipping containers.

Insurance Grade:

These padlocks are recognised under a number of insurance and testing standards including:



The lock is BSEN 12320 / CEN rated to grade 4 on the smaller version and grade 5 on the larger. If you''re unfamilair with this system this please read this page first: https://www.padlocks.co.uk/advice/insurance-cen/.

Removable Shackle:

This padlock comes with the added benefit that the shackle can be removed from the body entirely. Out of the box the shackle is like any other padlock and retained inside the lock when in the open position. However, if you follow our tutorial you'll be able to convert the lock so that the shackle releases completely, allowing more room to maneuver the lock in tight spaces. Click here for shackle release tutorial.

Keys:

All our Granit padlocks are delivered with 2 keys each inclusive of the price, one of which is an LED powered version to help find the keyway in low-light conditions. If you require additional keys you can order them by clicking here

ABUS Plus LED Key


ABUS Granit padlocks come with keys that cannot be copied by a standard lock smith or a key cutting machine. Your padlock will come with a special unique Code Card which you can use to purchase replacement keys in the future.
ABUS Code Card

Sizes:

We currently offer two sizes of Keyed Alike High Security Padlocks - 63mm and 77mm.

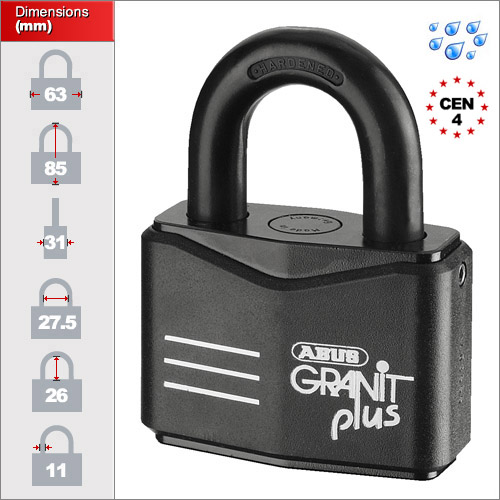

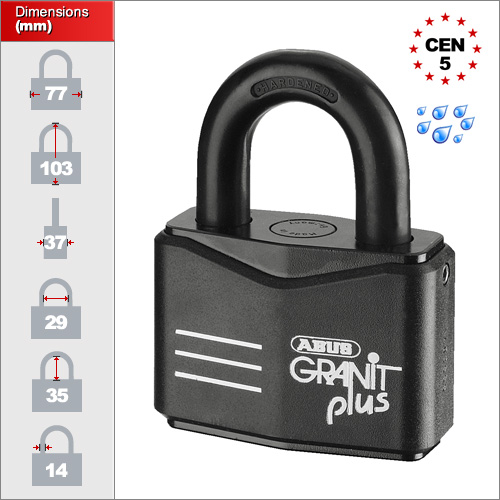

Full Dimensions:

After selecting your size from the drop-down menu above you can then click on the image to show the exact dimensions. Otherwise you can view the dimensions of each below:

63mm - Click here
77mm - Click here

Technology:

The ABUS Plus Cylinder is a disc cylinder whereby a stack of different discs is rotated when the key is turned. How far the key turns depends on the indentations in the key. If the discs are not correctly sequenced, a pin blocks the rotation of the cylinder and with it the opening of the lock. We have more information on the ABUS Plus cylinder here.

Images:

Here are some good images showing freeze testing and also the breakdown of the cylinder. What is noticable is the lack of springs and moving parts. the mechanism is simple made from rotating disks, making it impossible to pick and highly resistant against weather and freezing.

abus granit cylinder breakdown





Below: A 37/55 Granit being tested against crow bar torsion as part of the CEN Testing Standards
